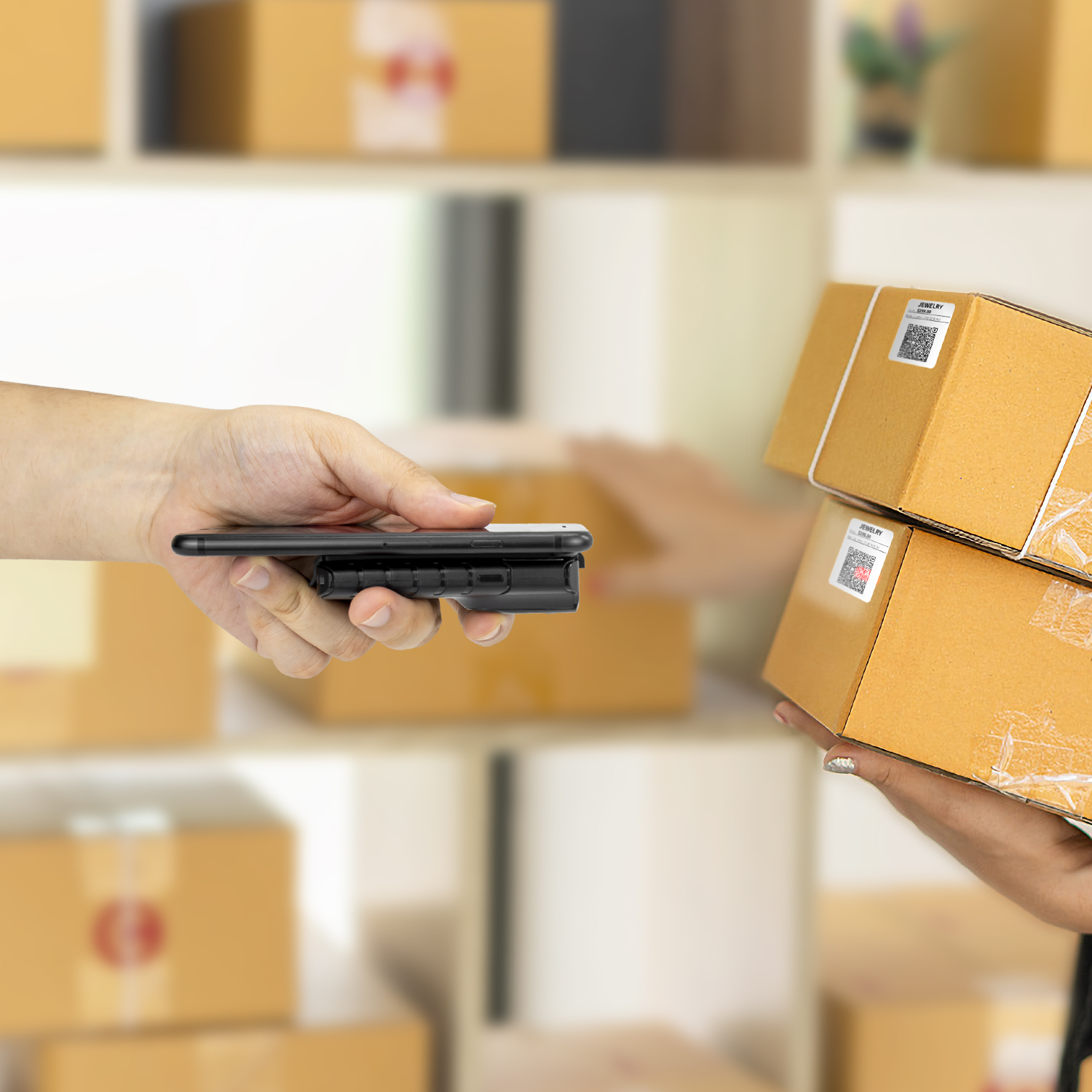

Leitor de código de barras 2D E800

-10°C-50°C

5.2

Temperatura de armazenamento:

-20°C-70°C

5.3

Umidade:

5%-95%

5.4

Imunidade à luz ambiente:

0~100000 LUX5

Conformidade e Segurança

6.1

Resistência à queda:

Suporta queda livre de 1 metro

6.2Certificações:CE, RoHS, FCC： ± 60°，Declination± 60°

1.1.7

Support code system

1D

UPC-A/UPC-E、EAN13/EAN8/ISBN/ISSN、Code128/GS-128、Code39、Code93、Code32、Code11、Codabar、MSI PLSEEY、ITF25、STD25、Matrix25、IND25、HK25、Pharma code、Telepen、Trioptic code、Brazilian bank code、Postal Code 、GS1 Databar、GS1 Compsite code

2D

QR Code/Mirco QR、Data Martrix、PDF417/Mirco pdf417、Aztec、Maxicode、Hanxin

1.1.8

Scan depth of field

Code128 5mil 6bit 4-10cm

QR Code 20mil 16bit 2.5-25cm

PDF417 6.8mil 6bit 3.5-22cm

EAN13 13mil 13bit 4.5-27cm

DataMartix 10mil 20bit 2.5-9.5cm

1.2

Contrast:

≥25%

1.2.1

Scanning Modes:

Manual trigger, Continuous scan, Auto-sensing

2

Wireless parameters

2.1

Transfer method

2.4G Wireless + Bluetooth (supports Bluetooth 2.0, 3.0, 4.0, 4.2) + Wired USB

2.2

2.4G communication distance

Up to 65 meters (line of sight)

Bluetooth communication

distance

Up to 20 meters (line of sight)

2.3

Battery Capacity:

1200mAh

2.4

Charging Time:

3-4小时

2.5

Standby Mode:

Enters standby after 3 minutes of inactivity

2.6

Charging Input:

5V 2A

3

Electrical Parameters

3.1

Operating Voltage:

DC 5V±5％

3.2

Operating Current:

215mA

3.3

Standby Current:

0.6μA

4

Physical Characteristics

4.1

Dimensions (L × W × H):

L × W × H (mm): 87*15*53mm

4.2

Weight:

≈52g

4.3

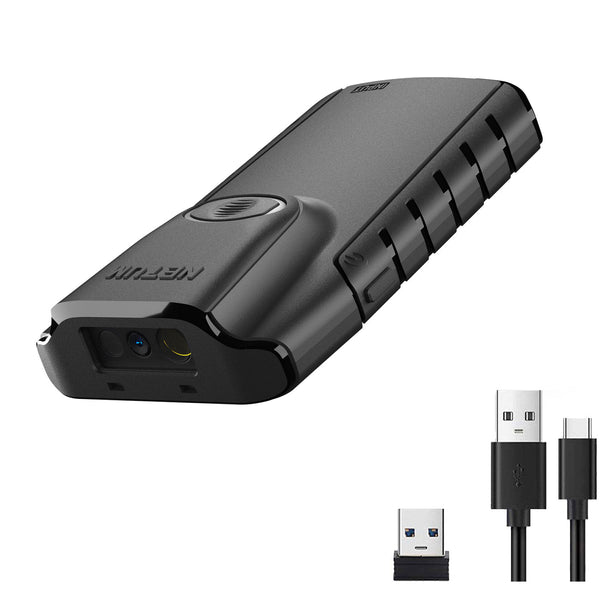

Cable Length:

1.2m

4.4

Interface:

USB

4.4

Color:

Black

4.5

Material:：

ABS

4.6

Notification Methods:

Buzzer, LED indicator, Vibration,

5

Environmental Specifications

5.1

Operating Temperature:

-10°C-50°C

5.2

Storage Temperature:

-20°C-70°C

5.3

Humidity:

5%-95%

5.4

Ambient Light Immunity:

0~100000 LUX

6.1

Drop Resistance:

Withstands 1-meter free fall

6.2

Certifications:

CE, RoHS, FCC
